The BIPAP DS-8 is a state-of-the-art BiPAP device designed to provide effective non-invasive ventilation therapy for patients with sleep apnea, COPD, and other respiratory conditions. Its intelligent AI algorithm monitors and adjusts pressure in real-time, ensuring optimal breathing support and comfort. The device features a low-noise DC brushless motor, delivering quiet operation for uninterrupted sleep. With an integrated heated humidifier, anti-backflow water tank, and intuitive 2.8-inch HD display, users can easily monitor and control therapy settings. Durable, reliable, and user-friendly, the DS-8 is ideal for both home and clinical use.
Standard Manufacturer
Ships within 24 hours
The BIPAP DS-8 is engineered to provide comprehensive respiratory support for patients with sleep apnea, chronic obstructive pulmonary disease, and other respiratory conditions. Its cutting-edge AI algorithm monitors the patient’s breathing pattern in real-time, automatically adjusting inspiratory and expiratory pressures for optimal ventilation. This ensures patients maintain stable, synchronized breathing while preventing discomfort caused by mask leakage or pressure fluctuations. The device is built with a high-performance, low-noise DC brushless motor, producing less than 29 dBA, so patients enjoy a quiet, undisturbed sleep environment.

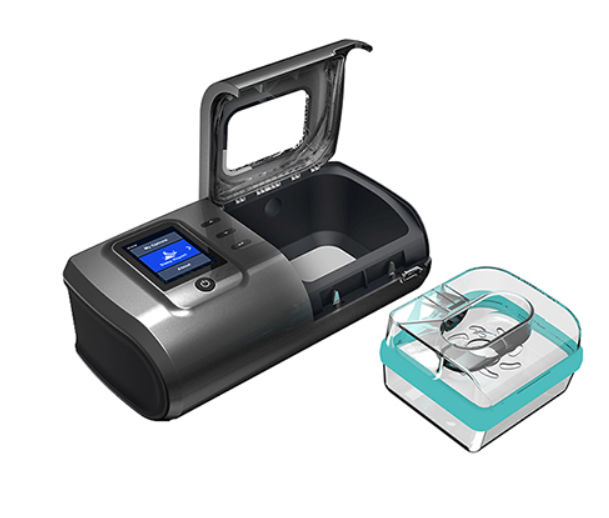

Designed for ease of use, the DS-8 features a 2.8-inch TFT color display, enabling users to quickly access settings, monitor therapy, and adjust humidification levels. The integrated heated humidifier with five levels ensures optimal moisture for airway comfort, while the anti-backflow and anti-dry burn system protects the water tank. The device’s advanced leak compensation and breath event detection maintain therapy accuracy even during movement, ensuring consistent ventilation.

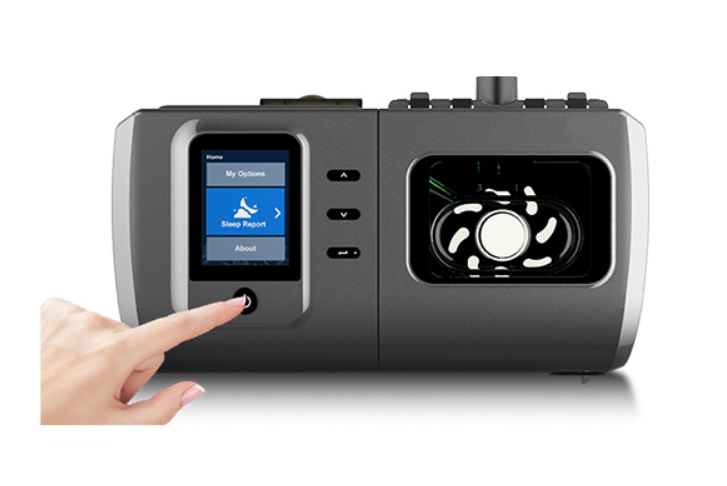

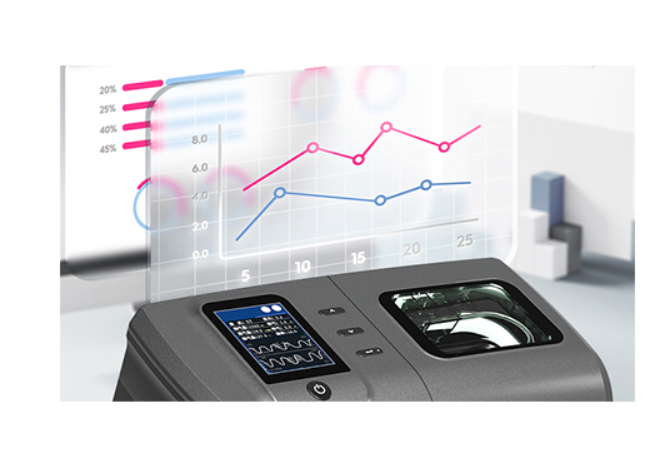

With adjustable ramp times, auto altitude compensation, and full respiratory event monitoring, the BIPAP DS-8 supports a wide range of clinical and home scenarios. Its robust design ensures durability, while the simple one-button start/stop and intuitive interface make it accessible for all users. Backed by extensive data storage exceeding five years, it allows clinicians and patients to review sleep data and therapy efficiency, making it a versatile and reliable solution for long-term respiratory care.
| Description | BiPAP DS-8(ST30) |
|---|---|
| Work Mode | CPAP, Auto, S, T, ST, APCV |
| Color | Grey |
| Sound | <29 dBA |
| Screen | 2.8 inch TFT, 320 x 240 |
| Pressure Range | 4-30 cmH2O |
| IPAP | 4-30 cmH2O |
| EPAP | 4-20 cmH2O |
| Data Storage | >5 years |
| Power | Input: 100-240V~, 50/60Hz, 2A Max. Output: 24V === 2.5A |
| Over-Temperature Protection | Stop automatically, alarm with 4 times beeps |
| Parameter Lock | Yes |
| Screen off | Screen off in 15 minutes, press any button to highlight screen |
| Backup Rate | 5-50/min, adjustable |
| I/E | 10-80% |
| Ramp time | 0-60 min, adjustable 1min/Step |
| Auto ON/OFF | Yes |
| Inspirate Triggle | 1-5 level |
| Expiratory Level | 1-5 level |
| Inspirate Sensitivity | 1-5 level |
| EPR (Expiratory Pressure Relief) | Yes, 0-3 level |
| Auto-Altitude | Yes |
| Leak Compensation | Yes |
| Awake Detection | Yes |
| Breath Event Detection | Yes |
| Water Tank Capacity | 220mL Max. |
| Humidifier Level | Integrated Heated, 0-5 level |
| Alert | Power off, mask off |
| Dimensions (cm) | 28L x 14W x 9.5H (machine) |
