HS5C Magnetic Hotplate Stirrer

The HS5C Magnetic Hotplate Stirrer offers precise heating and stirring for laboratory applications. It features a digital display for accurate control of speed, time, and temperature. With strong magnetic force, it ensures stable and efficient mixing of liquids. The unit includes over-temperature protection for enhanced safety. Ideal for research labs, chemical analysis, and educational use.

Key Features:

2 Year Warranty

Standard Manufacturer

Fast Delivery

Ships within 24 hours

Certified Quality Standards:

The HS5C Magnetic Hotplate Stirrer is a versatile and reliable laboratory instrument designed for precise heating and mixing tasks. Equipped with a digital display, it allows users to easily monitor and adjust speed, temperature, and time for consistent and repeatable results. The device supports dual temperature control modes—using the hotplate surface or an external temperature probe—providing flexibility for different experimental requirements.

With a powerful magnetic system, the HS5C ensures smooth and stable stirring even for demanding applications. The hotplate features a corrosion-resistant stainless steel surface, ensuring durability and long-term performance in laboratory environments. Its brushless motor delivers quiet, maintenance-free operation, enhancing overall efficiency.

Safety is a key feature, with built-in over-temperature protection that automatically shuts off the device when the maximum safe temperature is exceeded. The included support stand and probe clamp make it easy to integrate temperature measurement tools during operation. Suitable for chemical synthesis, sample preparation, and educational experiments, the HS5C combines precision, safety, and ease of use in one compact unit.

Model HS-5C
Motor Type Brushless motor
Speed Range 200 – 1500 rpm
RPM Increment 10 rpm
Max Stirring Capacity 2L (H₂O)
Max Hotplate Temperature 280°C
Hot Plate Size Φ135 mm
Plate Material Stainless steel ceramic coated
Control Method Digital screen + keypad
Magnetic Stirring Bar Size 30 mm (linear)
Direction of Rotation Anticlockwise
Temperature Display Accuracy 0.1°C / 1°C
Temperature Control Accuracy ±1°C / ±3°C
Temperature Sensor PT1000 / external probe
Rated Power 300W
Voltage AC 110V / 220V
Dimensions 225 × 155 × 90 mm

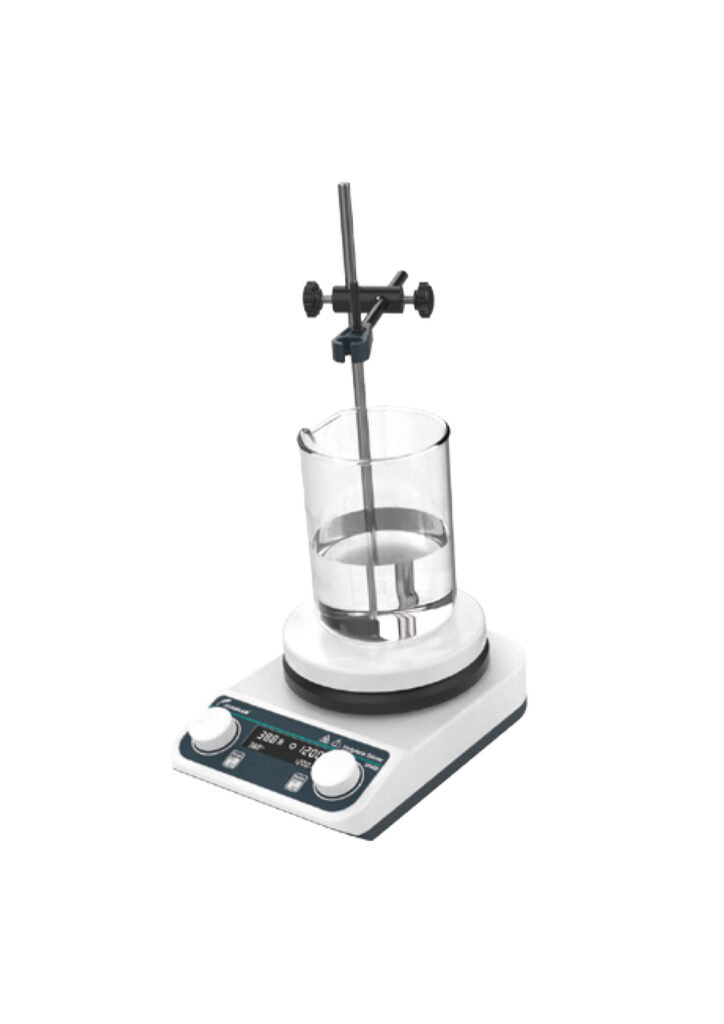

HS5C Magnetic Hotplate Stirrer

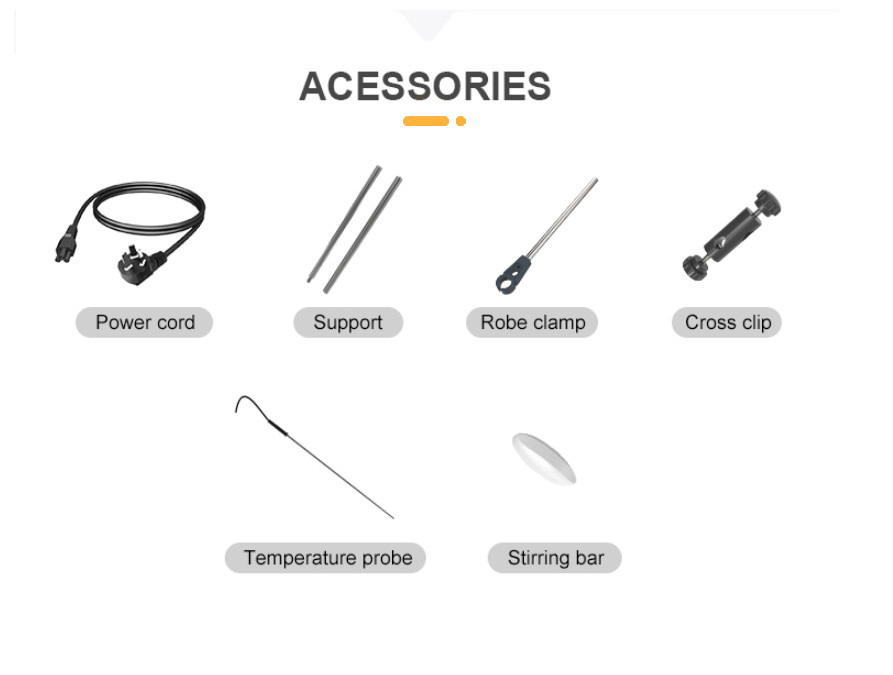

HS5C Magnetic Hotplate Stirrer Accessories
