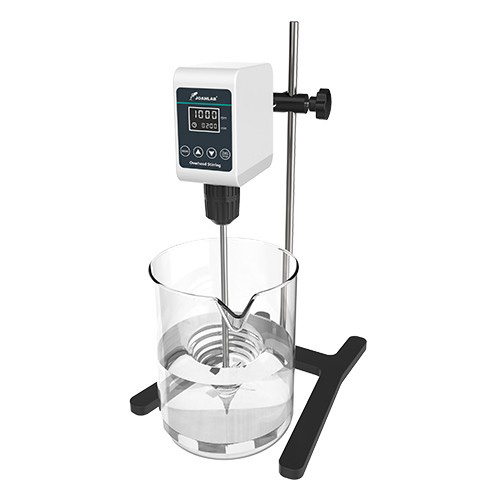

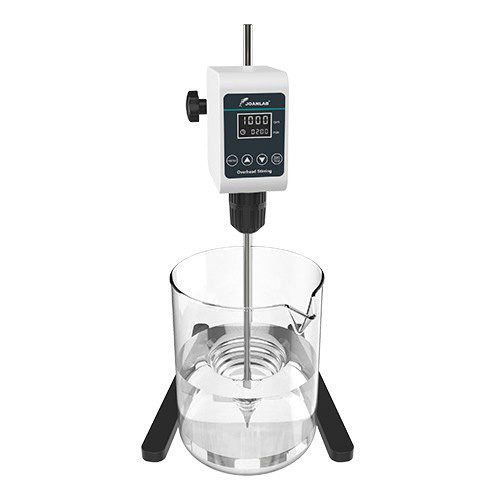

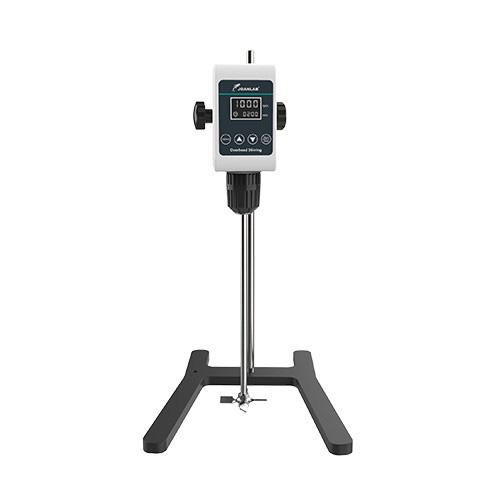

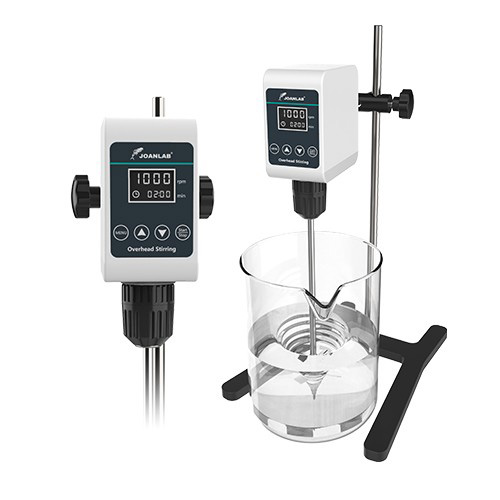

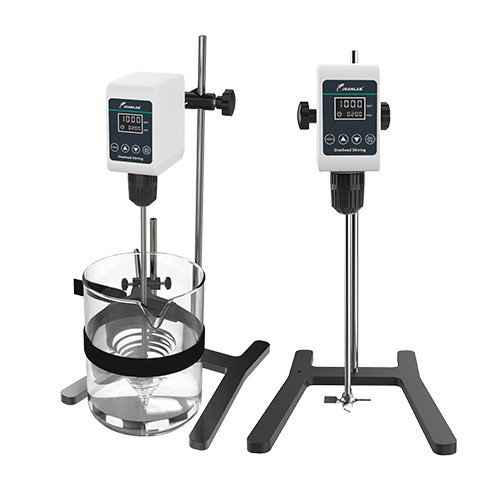

The OS-5S and OS-10S Overhead Stirrers are designed for high-efficiency stirring with a brushless motor for reliable performance. With a digital display and adjustable speed settings from 100 to 1200 rpm, they offer a versatile stirring solution. The OS-5S has a maximum capacity of 5L, while the OS-10S can handle up to 10L of liquid. Ideal for high-viscosity materials, both models feature a long-lasting design for smooth operation, making them perfect for research and industrial applications.
Standard Manufacturer
Ships within 24 hours

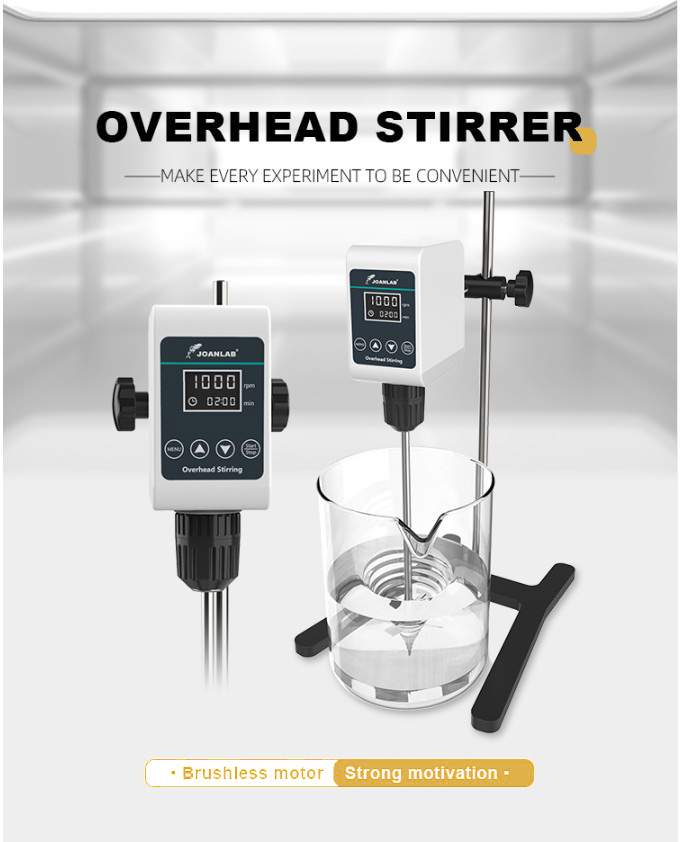

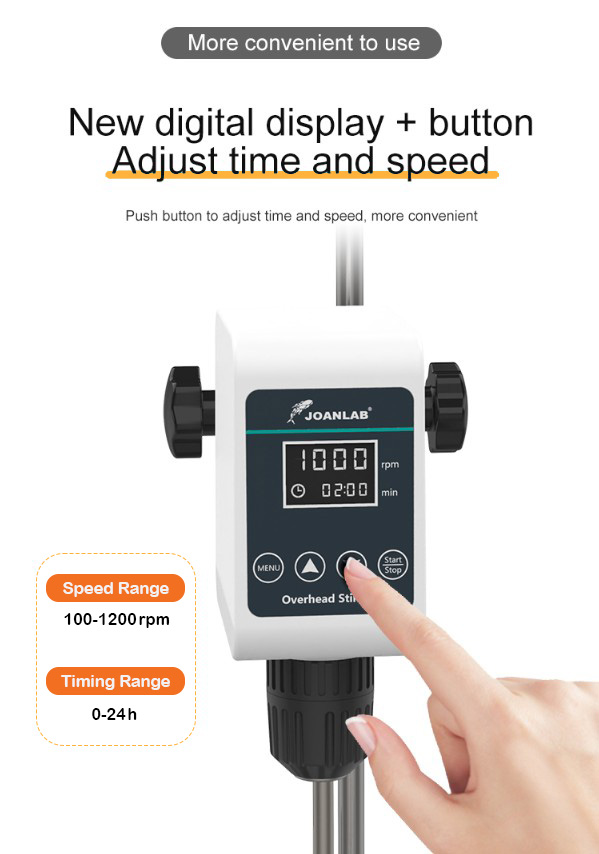

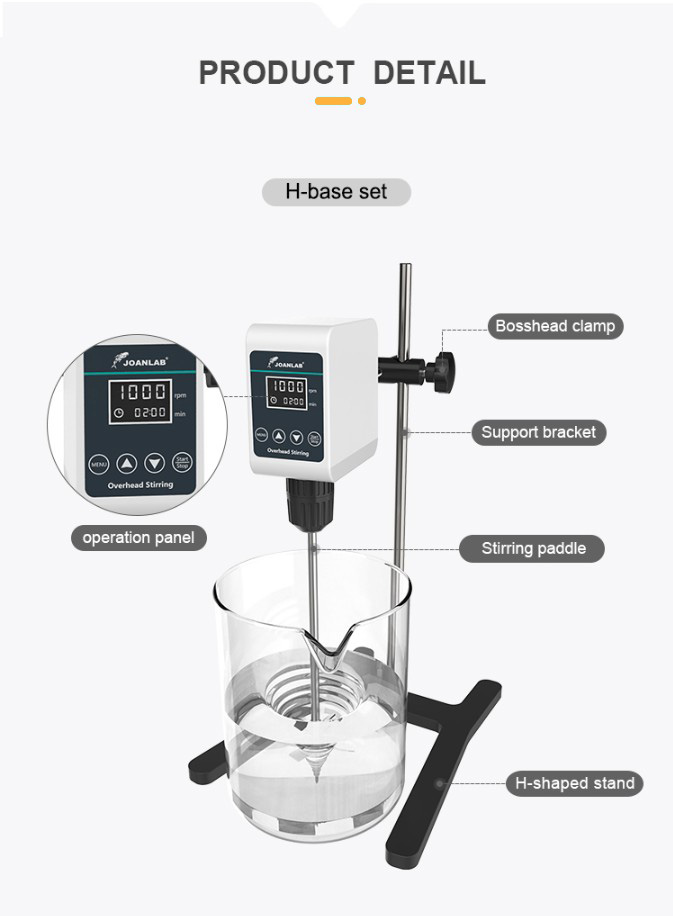

The OS-5S and OS-10S Overhead Stirrers are engineered to deliver exceptional performance for high-viscosity liquid mixing. These models feature a robust brushless motor, which ensures continuous, reliable operation with reduced maintenance. Designed with versatility in mind, they offer an adjustable speed range from 100 to 1200 rpm, making them suitable for a wide array of applications. The digital display interface allows for precise control of both speed and time, with the ability to set the stirring time up to 24 hours, providing consistent and accurate results throughout the entire process.

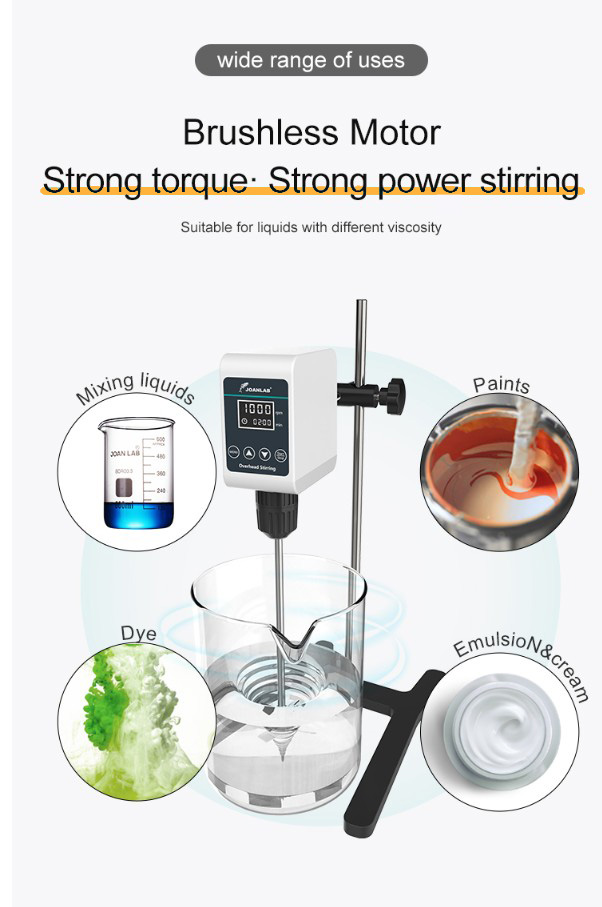

The OS-5S model supports a maximum capacity of 5L, ideal for smaller to medium-scale applications, while the OS-10S is capable of handling up to 10L, making it suitable for larger batches. Both models have a wide viscosity handling range, with the OS-5S handling up to 5000 mPas and the OS-10S up to 8000 mPas, making them perfect for challenging materials like emulsions, paints, and pastes.

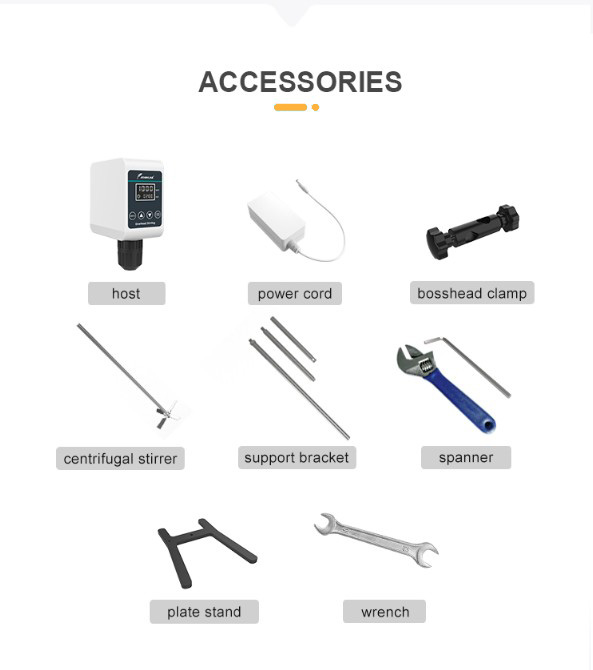

Equipped with positive and negative rotation capabilities, these stirrers can be customized to meet specific needs, ensuring a more uniform mixture. The drill clamp diameter of 1-10mm provides flexibility in choosing the appropriate stirring accessory. Whether you’re working in a research laboratory, industrial environment, or any setting requiring reliable, high-performance stirring, the OS-5S and OS-10S will meet your needs for precise, consistent, and efficient results.
| Model | OS-5S | OS-10S |
|---|---|---|
| Motor | Brushless motor | Brushless motor |
| Operation Mode | Digital display + Button | Digital display + Button |
| Speed | 100-1200 rpm | 100-1200 rpm |
| Stepping | 10 rpm | 10 rpm |
| Maximum Mixing Volume | 5L | 10L |
| Rated Torque | 10N·cm | 15N·cm |
| Maximum Viscosity | 5000 mPas | 8000 mPas |
| Timing Range | 0-24h | 0-24h |
| Drill Clamp Diameter | 1-10mm | 1-10mm |
| Power | 36W | 50W |
| Size | 134*70*173 mm | 134*70*173 mm |
| Voltage | 24V 1.5A | 24V 1.5A |
