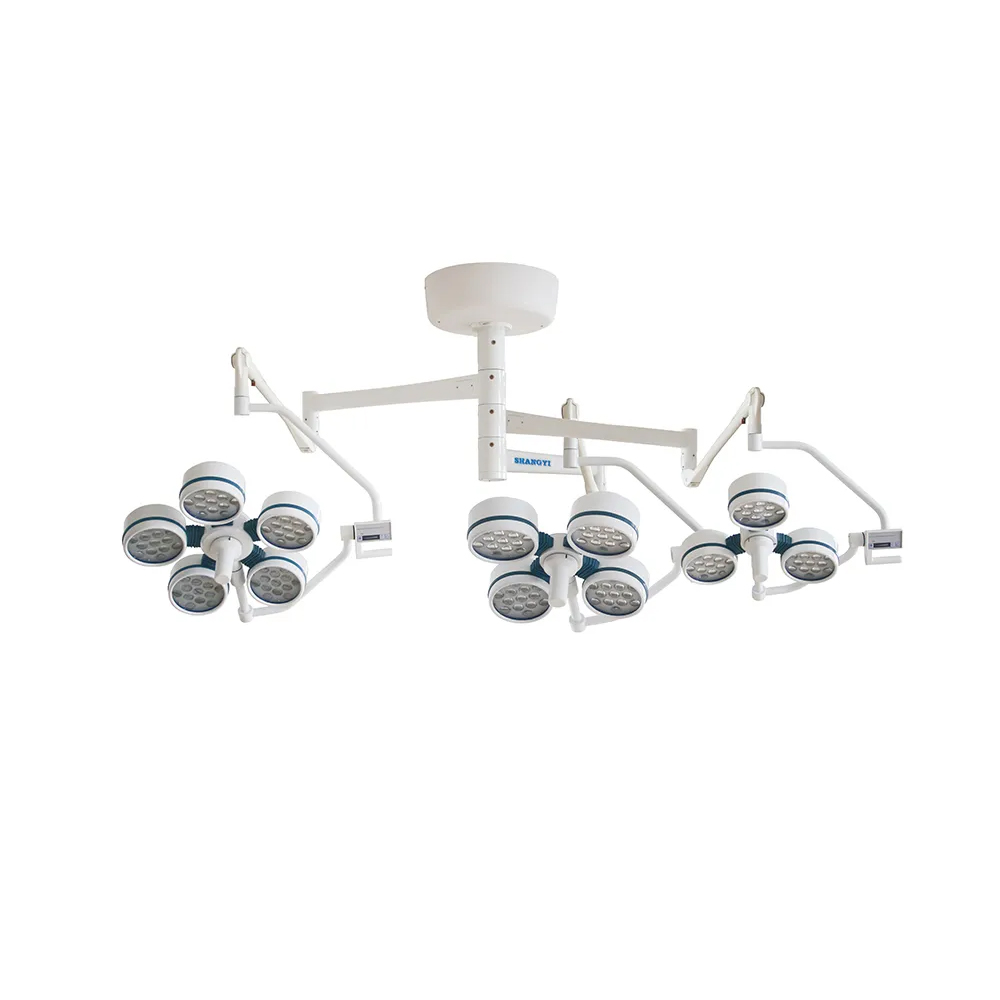

Dual Head Ceiling Mounted OT Light
- Model:
- YD02-LED3+4+5 LED

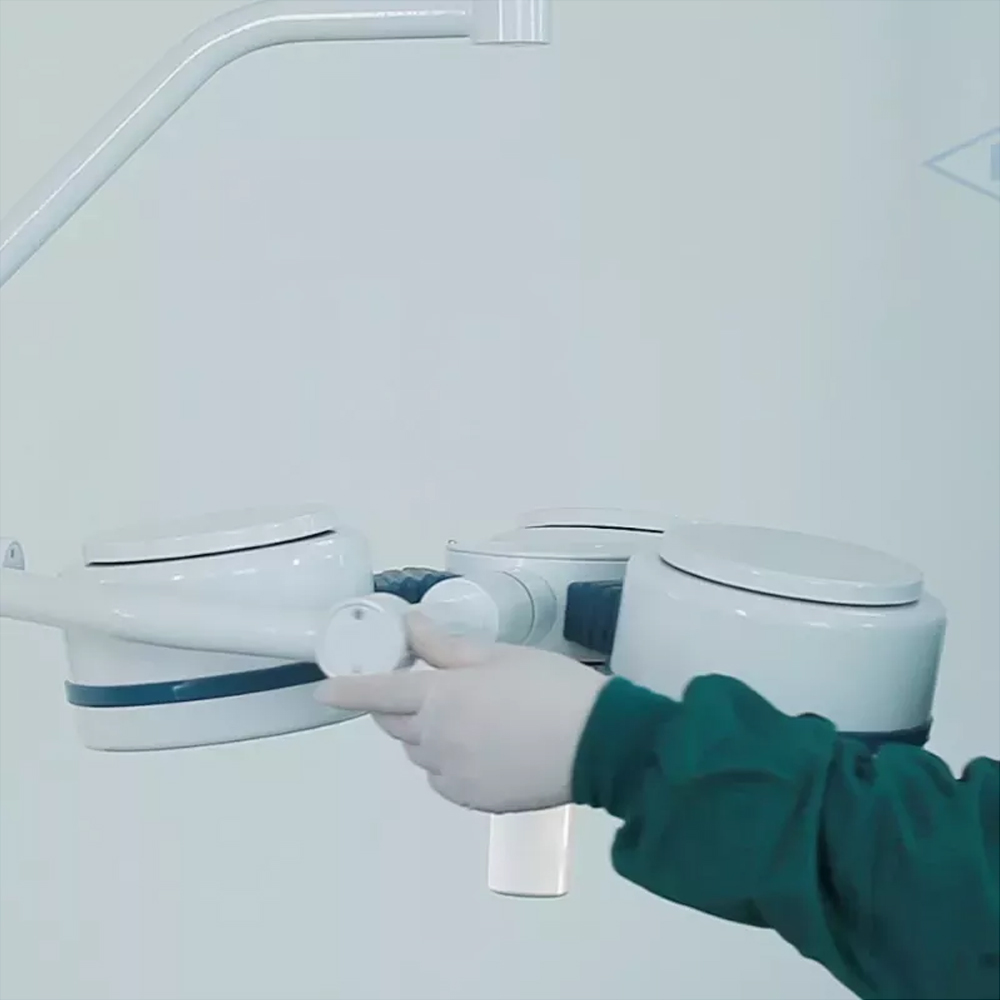

The YD02 series LED surgical shadowless lamp is an upgraded solution to halogen lamps, offering longer service life (50,000+ hours with Osram LED beads) and adjustable brightness. It provides uniform illumination with high shadowless rate, improving the doctor’s working environment and efficiency. Lighting depth is adjustable via handle with CAD/CAM technology. The multi-point light source ensures uniform light spots, and the adjustable brightness button delivers illumination of over 120,000 lux with a color temperature of 4800K.
• Illuminance: LED3≥120,000Lux/LED4≥130,000Lux/LED5≥150,000Lux
• Colour temperature: 4800±300K
• Colour reduction index(Ra): 96
• Illuminance depth: 600mm
• Total irradiance: LED3:460W/㎡/LED4:488W/㎡/LED5:555W/㎡
• Size of light field: 100-240mm
• Lamp head diameter: LED3:500mm/LED4:550mm/LED5:550mm
• Rated power of bulb: 3.2V/1W
• Service life of illuminant: ≥50.000h
• Power supply voltage: AC110-240V,50-60Hz
• ENDO: YES
• Best height of installation: 2900mm
• Total power: 220VA
• Total LED bulb quantity: LED3:39pcs/LED4:52pcs/LED5:65pcs
