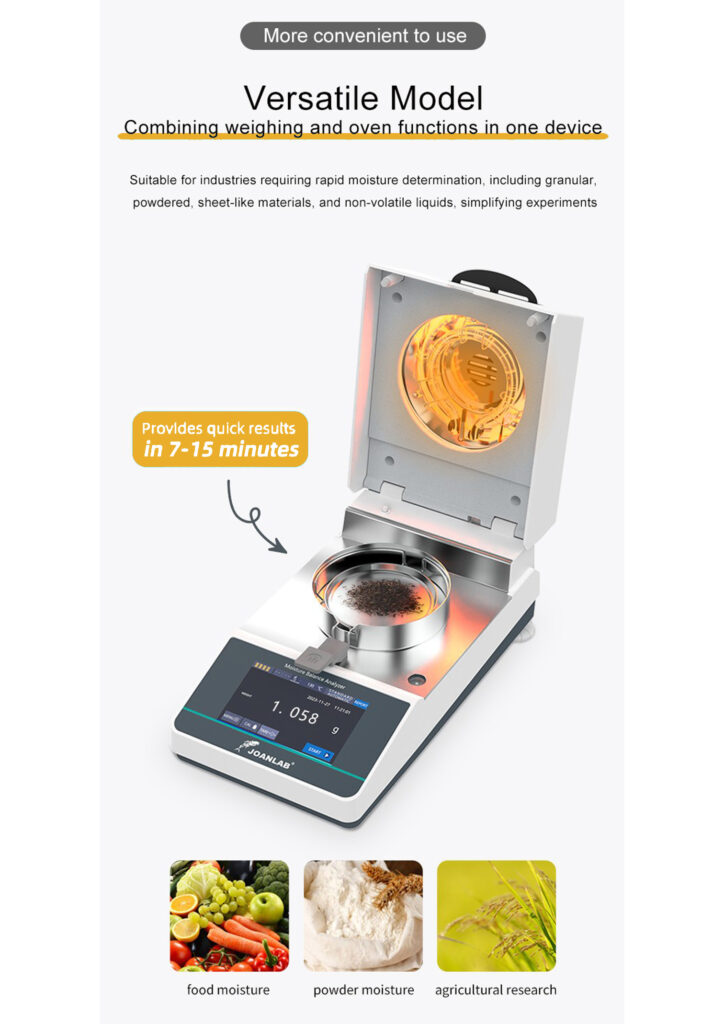

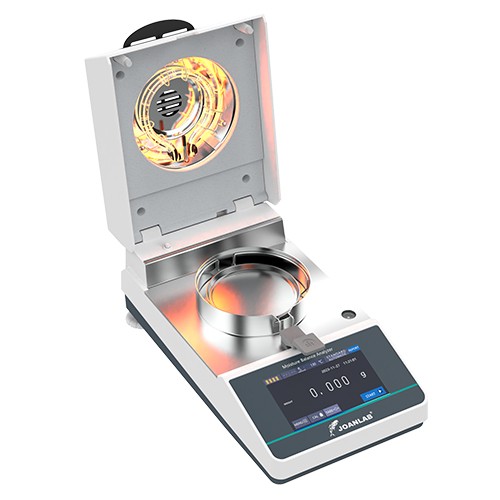

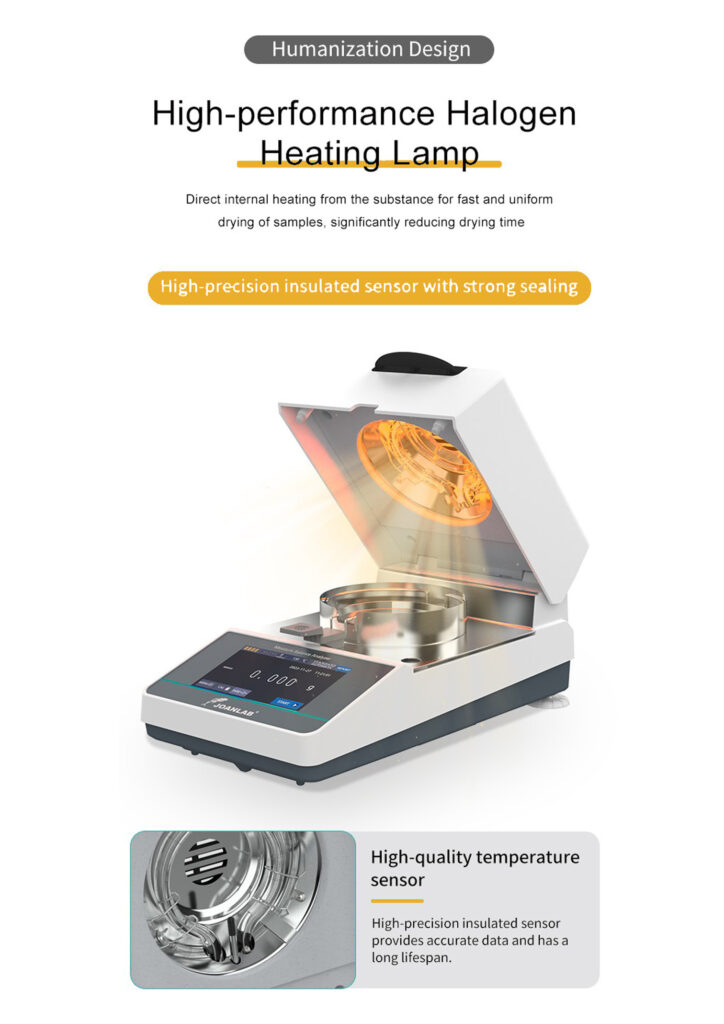

The MBA1103 Halogen Moisture Analyzer is a high-precision laboratory instrument designed for fast and accurate moisture determination across a wide range of industries. Utilizing an advanced halogen heating system, it delivers rapid and uniform sample drying, significantly reducing testing time while maintaining excellent accuracy.

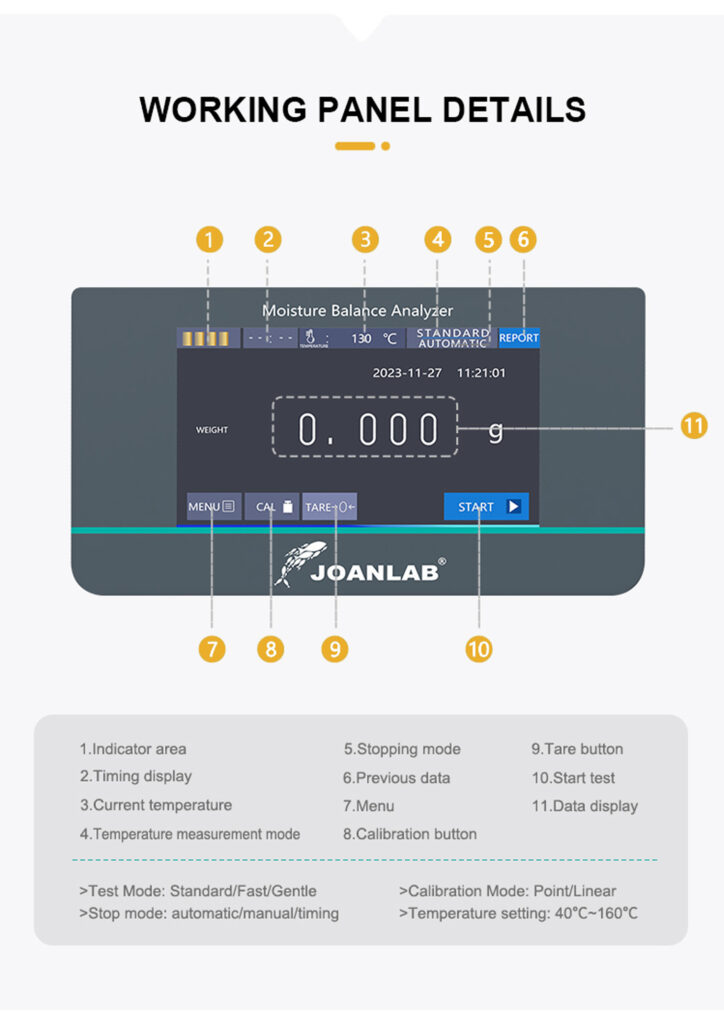

With a readability of 0.001g and a moisture resolution as low as 0.01%, the MBA1103 ensures reliable and repeatable results for demanding applications. The integrated 5-inch touchscreen interface offers intuitive operation, allowing users to easily set temperature, time, and testing modes. Real-time dynamic curve analysis provides clear insight into the drying process, enhancing data interpretation.

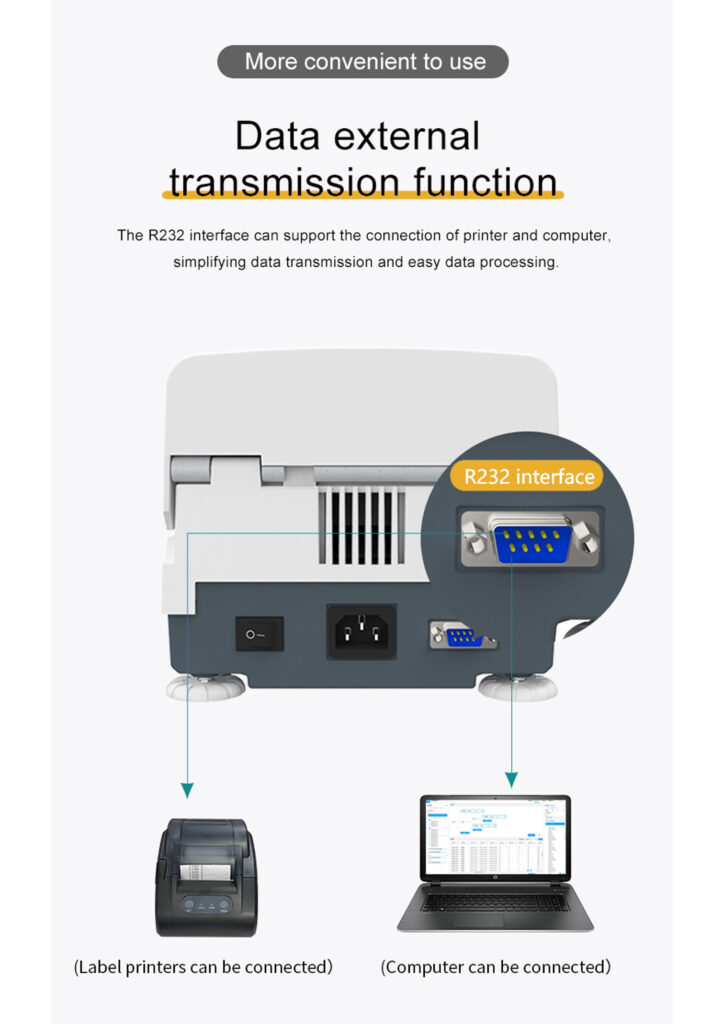

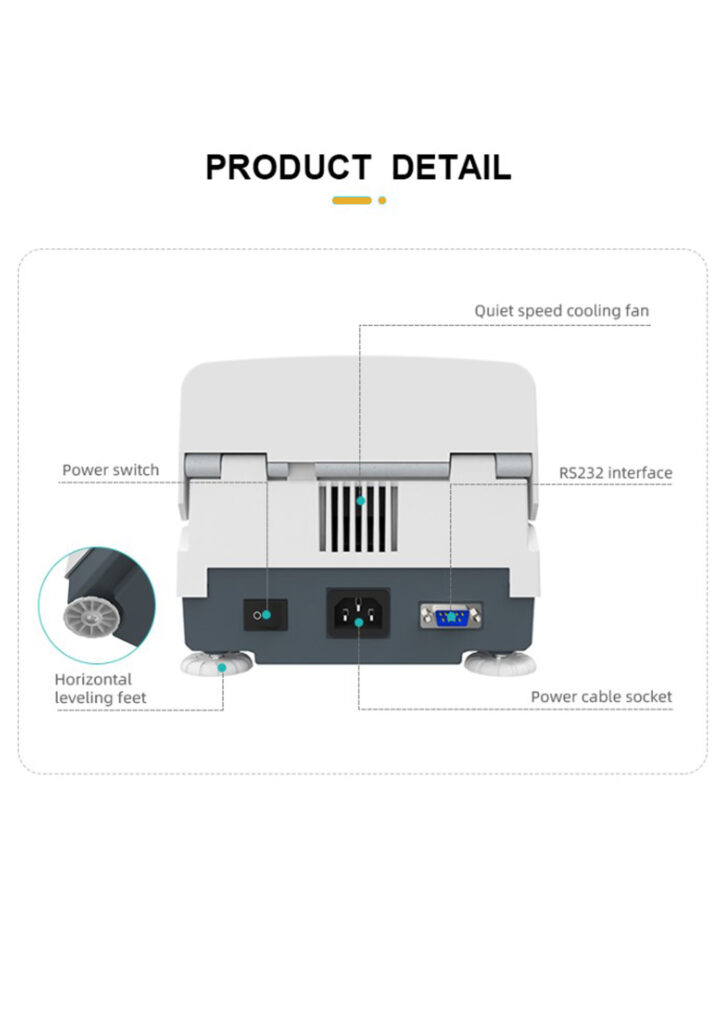

Built with a durable aluminum weighing pan and high-quality PT-100 temperature sensor, the analyzer ensures long-term stability and precision. Multiple safety protections—including over-temperature protection, overload protection, and automatic stop modes—enhance operational safety. Additionally, the RS232 interface allows seamless data transmission to printers or computers.
This moisture analyzer is ideal for testing food products, agricultural samples, powders, and other materials requiring precise moisture analysis.
| Model | MBA1103 |
|---|---|
| Capacity | 110 g |
| Readability | 0.001 g |
| Moisture Readability | 0.01% |
| Moisture Range | 0.00% – 100.00% |
| Sensor | Load Cell (HMB) |
| Display | 5-inch Touch Screen |
| Heating Source | Halogen Lamp |
| Temperature Sensor | PT-100-2 |
| Temperature Range | 40°C – 160°C |
| Temperature Setting | 1°C increments |
| Pan Size | Φ96 mm |
| Operating Temperature | 5°C – 35°C |
| Data Storage | 20 groups |
| Analysis Mode | Real-time dynamic curve |
| Interface | RS232 |
| Power Supply | AC 110V/220V, 50/60Hz |
| Dimensions | 336 × 185 × 165 mm |
| Packing Size | 415 × 310 × 255 mm |
| Gross / Net Weight | 4.0 kg / 3.5 kg |
