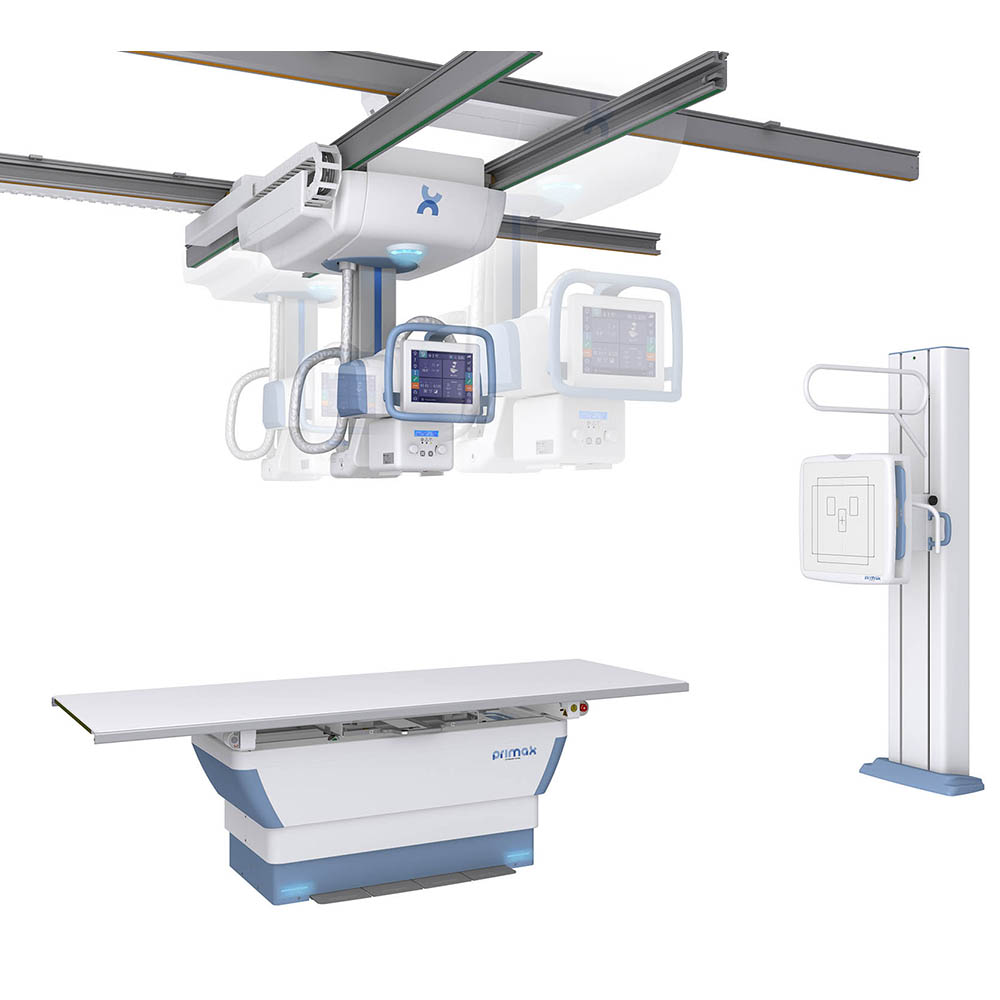

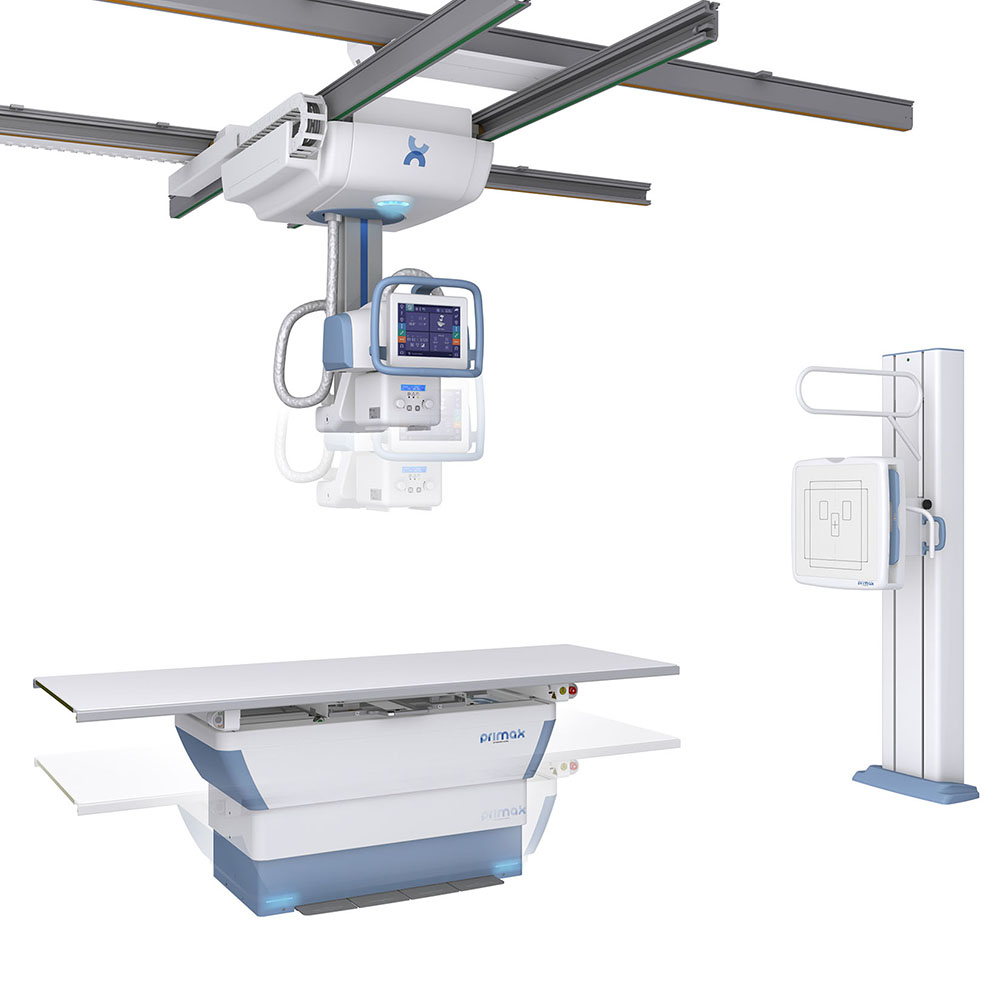

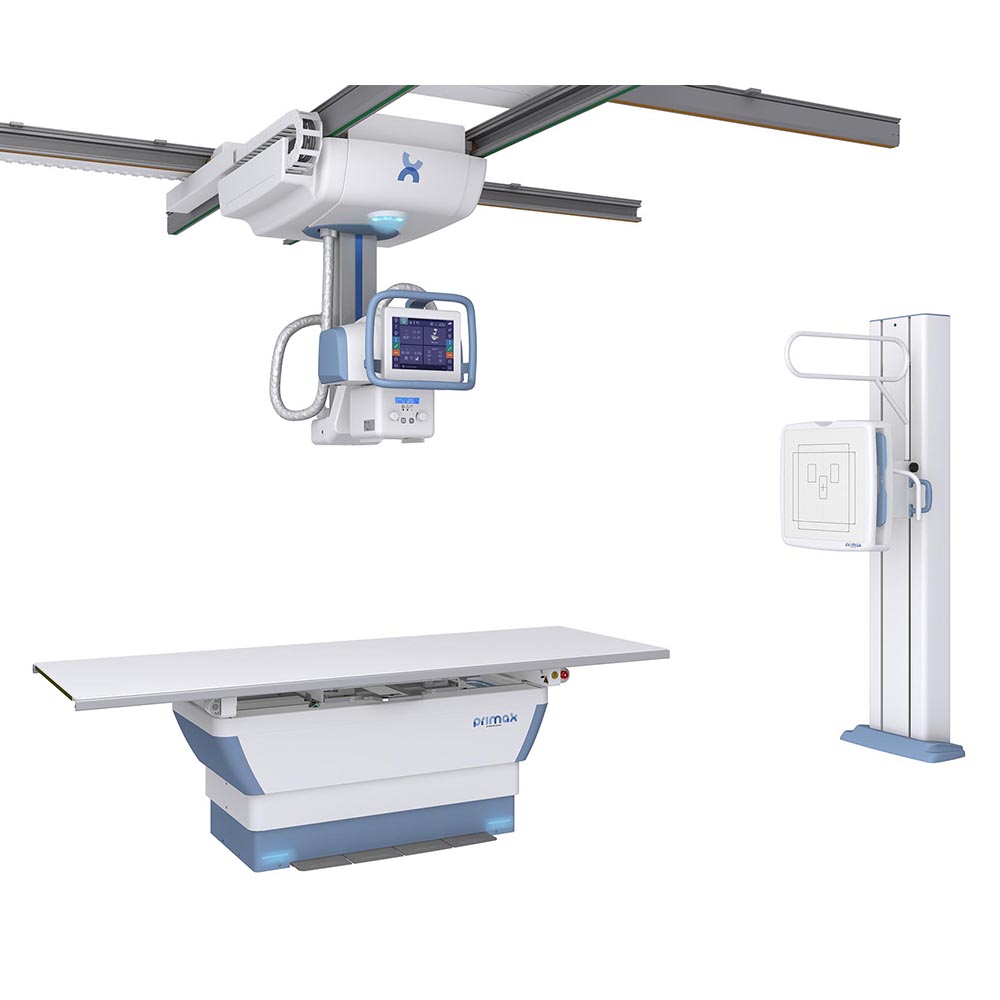

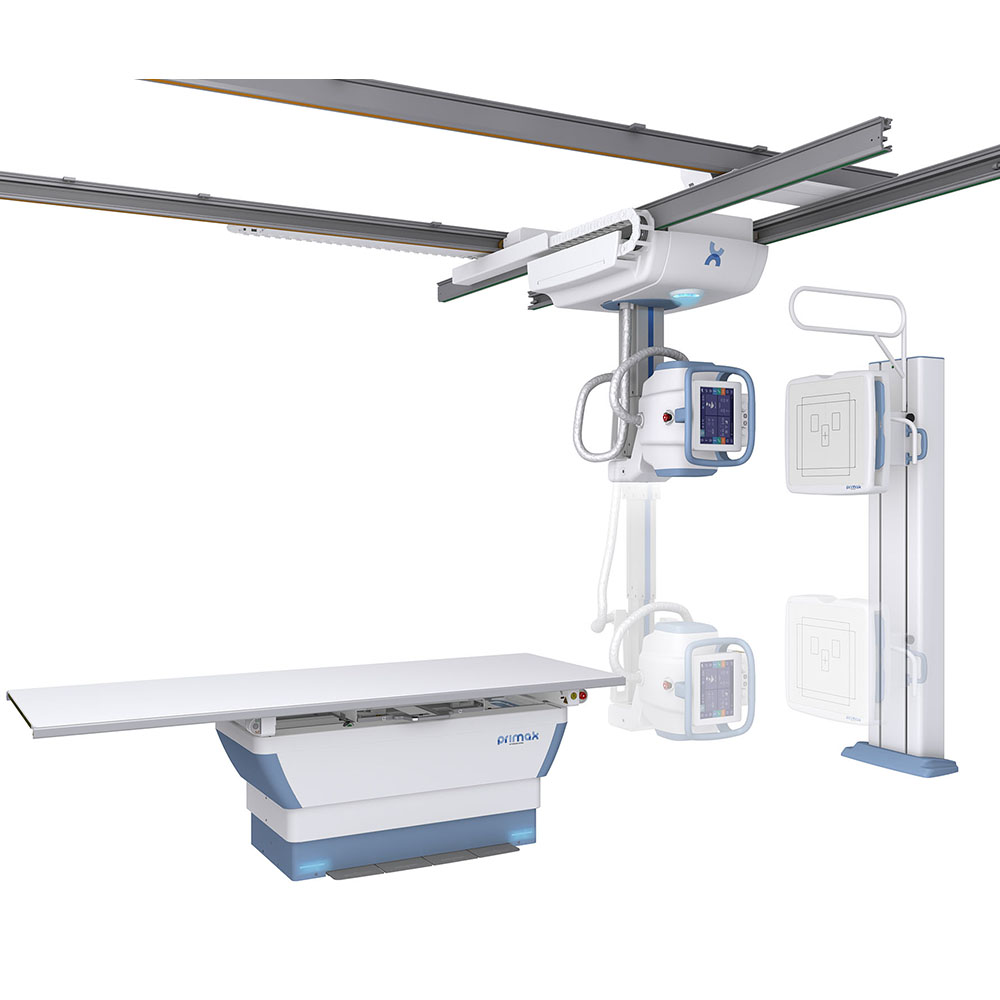

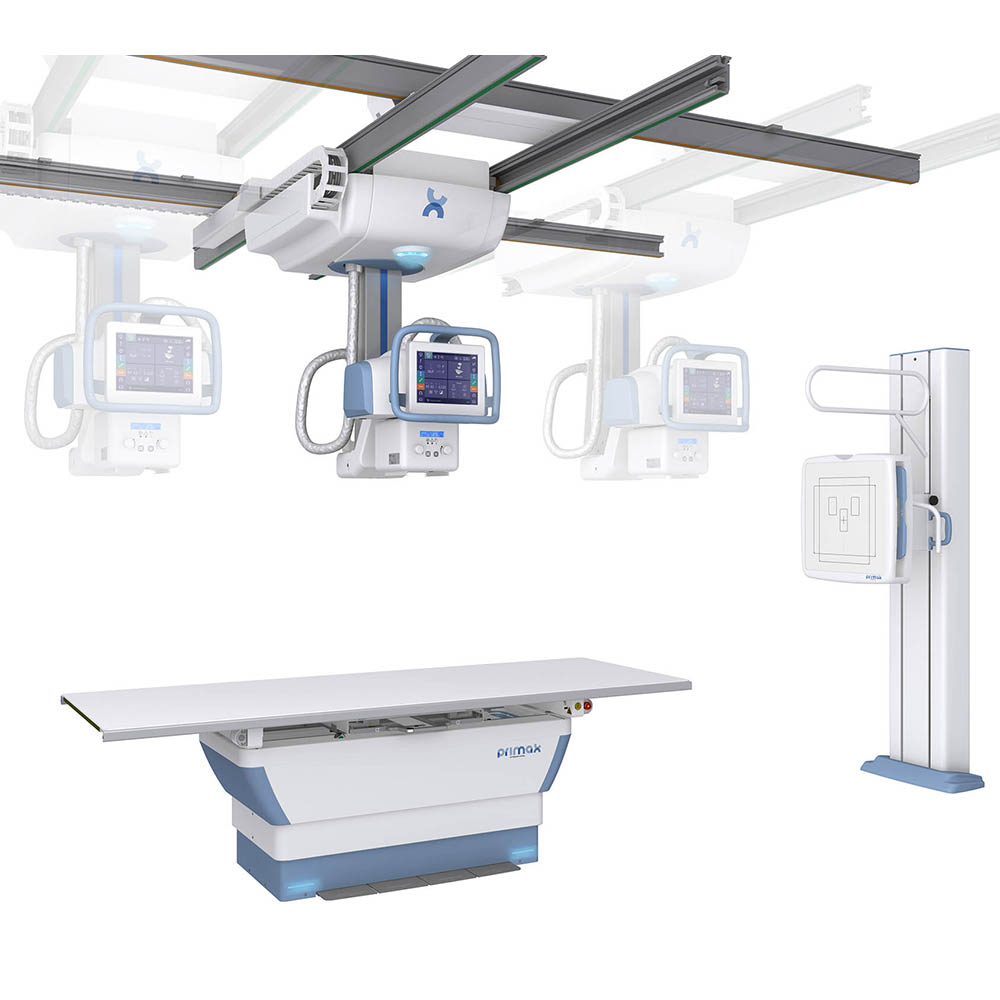

X_Ray Machine

“GENERATOR POWER: 65 kW – 80 kW
CEILING SUSPENSION: Motorized, with servo-assisted motors and zero-effort technology. Entire handle is active for
manual positioning of the OTC. Large touchscreen display, with user-friendly high-resolution graphic interface, for
full integration with generator and imaging software.
Operating Modalities:
. Manual
. Auto-positioning
. Auto-tracking (both master and slave with table and chest stand)
TABLE: 4-ways floating tabletop, elevating, max patient weight up to 350 kg. Hands-free operation with foot pedal
control. Smooth and optimized elevating mechanism for outstanding patient comfort. Anti-collision system
incorporated.
CHEST STAND: Motorized movements, with tilting and rotating bucky
X-RAY TUBES: From 400 to 600 kHU
COLLIMATOR: Automatic collimator, with centering laser and motorized filters
IMAGING SYSTEM: Combinations of fixed and wireless flat panels available, 43×43 or 35×43 with PRIMO Imaging
Software
OPTIONS: Tomography
– Automatic stitching (vertical and horizontal)
Tomography “
